APSOvib® Leveling machine mounts

For mounting machines on uneven ground

  • Levelling machine mounts overview: Hinged foot and wedge mount
  • Levelling machine mounts overview: Hinged foot and wedge mount

Leveling machine mounts allow mounting machines on uneven ground. Their integrated leveling system easily allows a safe and precise installation on even as well as uneven ground and effectively prevents the machine from slipping away. Particularly suitable for machines without floor fixing, leveling machine mounts insulate against vibrations, they are shock-absorbing and damp the structure-borne sound. The insulator is highly resistant against aging, grease, oil and detergents.

Depending on the application Angst+Pfister offers numerous designs, types and different material combinations. For example, there are special designs for installations in inclined positions or a wide range of stainless steel and plastics applications especially designed for the food and beverages industry.

Our standard range consists mainly of 4 product families. Read more about them below.


Applications

  • Devices and equipment
  • HVAC / Fans
  • Food and chemical industry
  • Pumps and compressors
  • Machine tools
  • Heavy machine tools and presses
  • Logistic
  • Laboratory equipments


For all 4 product families there is no risk to damage the floor due to the fact that the rubber pad is vulcanized in the metal part.


Hinged food in glass fiber reinforced polyamide with articulated screw

Excellent entry-level product, high load capacity, available with galvanized or stainless steel screws, corrosion resistant, orientable +/- 15° and anti-gliding rubber pad.

This is a specific machine mount for the following industries: machine, logistic, food, beverage, etc.

No retention zone (development of bacteria) due to the fact that the rubber pad is vulcanized in the metal part.


Hinged foot with galvanized base and screw

Corrosion resistant, orientable +/-2.5°, vulcanized rubber pad and anti-gliding effect.

This is a specific hinged foot for all kinds of industrial machines.


Hinged foot with stainless steel base and screw

High corrosion resistance, orientable +/- 2.5°, vulcanized rubber pad and anti-gliding effect.

This is a specific machine mount for the following industries: food, beverage, pharmacy, chemical industry, etc.

No retention zone (development of bacteria) due to the fact that the rubber pad is vulcanized in the metal part.


Precision wedge mounts

Suitable for the leveling of heavy tooling machines such as machining centers, CNC automatic lathes, bore and milling plants, graphic machines, etc.

Product List

Product Image Description Technical data Key applications  Order
      Load capacity in N Devices & equipment HVAC/Fan Food and chemical industry Pumps & compressors Machine tools Heavy machine tools & presses Logistic Laboratory equipments
APSOvib® Machine mounts with polyamide base plate reinforced by fiber glass and stainless steel articulated screw Machine mounts suitable to set up systems and devices on uneven or slanted support surface < 45000 x x x   x   x x
APSOvib® Machine mounts with polyamide base plate, mini series   Machine mounts suitable to set up systems and devices on uneven or slanted support surface < 4000 x x x   x   x x

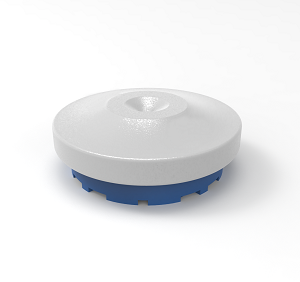

APSOvib® Machine mounts, standard For structure-borne sound-insulating and skid proof setup of machines and devices of all kind < 14000 x     x x

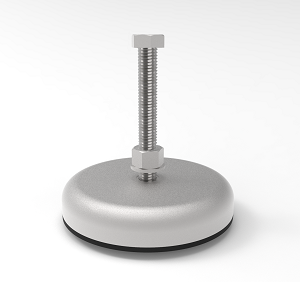

APSOvib® Machine mounts with rigid screw For structure-borne sound-insulating and skid proof setup of machines and devices of all kind < 14000 x   x x

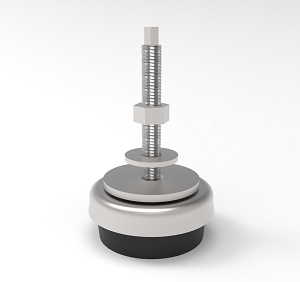

APSOvib® Machine mounts type MAKO For structure-borne sound-insulating and skid proof setup of machines and devices of all kind < 35000 x   x x

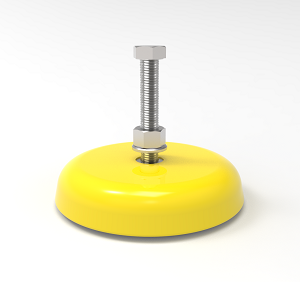

APSOvib® Machine mounts type LEVEL MOUNT® with and without base plate For structure-borne sound-insulating and slip-proof setup of machines and devices of all kind when high insulation efficiency is require < 40000 x   x x
APSOvib® Machine mounts, heavy series To setup, mount and level heavy machines < 90000           x
APSOvib® Machine mounts stainless steel and articulated screw For structure-borne sound-insulating and skid proof setup of machines and devices where corrosion resistance is required for example in the food industry, chemical industry, packaging, etc. < 30000 x   x   x     x

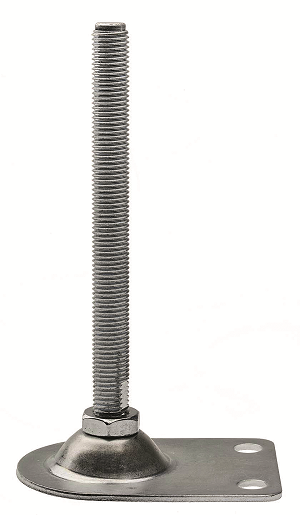

APSOvib® Fixation elements, with and without rubber base plate, steel and stainless steel To ensure rigid fixation of all machines and device < 30000 x x   x x   x

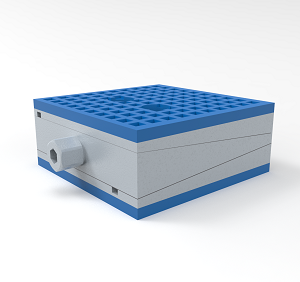

APSOvib® Precision wedge mounts Suitable for the leveling of tooling machines such as machining centers,  CNC automatic lathes, bore and milling plants, graphic machines, etc. < 50000           x

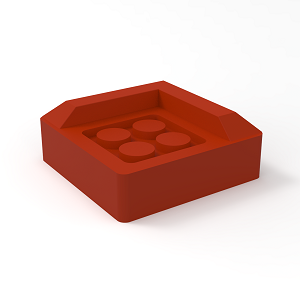

APSOvib® SUPER-GRIP Corners and edges They are specially suited for nonskid and structure-borne noise damping setups of  heat pumps, ice boxes, air conditioners and similar appliances < 2000 x   x   x     x
