APSOvib® Mounts for mobile applications
Product assortment to securely mount devices onto mobile applications
Mounts for mobile application, with anti-tear safety device
This product assortment is designed for use wherever devices like engines, cabins, generators or compressors need to be securely mounted into tractors, construction machines, trucks, busses or other moving vehicles and to effectively protect against vibration and noise. Here it is most important that the device does not tear off even in the case of an accident. In such a shock situation, the Angst+Pfister mounts for mobile applications guarantee a tear-off resistance for an acceleration of 5G and more due to their metal-on-metal construction.
Furthermore, they provide ideal insulation protection against all kinds of possible vibrations within the mobile application. Those are not only caused by the mounted device itself but by the running vehicle or the environment like unevenness of the street or road holes.
Applications
- HVAC / Fans
- Genset
- Pumps and compressors
- Gearboxes
- Combustion engines
- Vehicles cabs
- Machinery and presses
- Electrical enclosures
Conical bearings
In the field of cabin and engine suspension, conical bearings offer one of the best solutions. They are available in two different executions, Standard and HD for High Deflection to guarantee a better insulation. Their stiffness is progressive when the elastomer upper part comes into contact with the metal washer, giving the advantage of excellent insulating ability and absorbing shocks due to vehicle movements. Depending on the application, they can also have different stiffnesses longitudinally and transversely. Their conical shape gives them an exceptional service life to meet the most severe requirements.
APSOvib® H-Mounts
When aggregates such as compressors or generators, radiators or air conditioners need to be installed in a mobile vehicle, H-Mounts offer an excellent solution. With a simple and easy-to-install design, they are available from stock with different stiffnesses to best suit each specific application. In this way it is easy to compensate for uneven load distribution between the different support points.
Marine mounts
Marine mounts are mainly intended for the suspension of engines of all kinds, in marine sector as well as in construction machinery or stationary engines such as generators. Due to their shape, the transversal and longitudinal stiffness is different in order to best respond to different stresses such as the longitudinal shocks generated by an excavator. The metal part completely covers the elastomer to protect it from UV rays and possible oil and grease spills.
High-efficiency genset mounts
High-efficiency genset mounts are specially designed for large generators and diesel engines to provide optimal vibration insulation. The build-in protective cap protects the element against splashing water or oil. Due to the highly effective insulation, even low-frequency vibrations are not passed on into the structure. The two different mount sizes cover a high load carrying capacity, each type is available in 4 different stiffnesses. Thanks to the high deflection, a tuning frequency of up to 4 Hz can be achieved.
Product List
Product | Image | Description | Technical data | Insulation capacity | Key applications | Order | |||||||||||||
Load capacity in N | Natural frequency in Hz | Spring deflection in mm | High axial flexibility | High radial flexibility | High axial and radial flexibility | Medium and low frequency | Protection against bump & shock | HVAC/Fan | Genset | Pumps & compressors | Gearboxes | Combustion engines | Vehicles cabs | Machinery & presses | Electrical enclosures | ||||

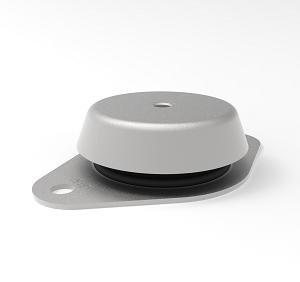

APSOvib® Machine mounts with anti-tear safety device | ![]() |
Universal applicable elements for vibration insulation of machines and devices; small overall height; horizontal stiffness higher than vertical stiffness | <2450 | >9 | <3.5 | x | x | x | x | x | x | x | x | x | |||||

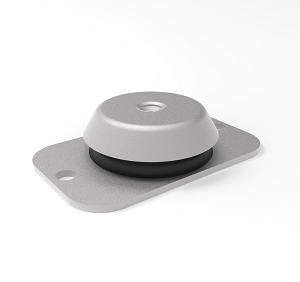

APSOvib® Machine mounts with reinforced body and anti-tear safety device | ![]() |
Specially designed for mobile devices where large accelerations can occur and only a little installation space is available | <2500 | >9.2 | <3 | x | x | x | x | x | x | x | |||||||
APSOvib® Conical bearings | ![]() |
Specially designed for mobile devices where large accelerations can occur and only a little installation space is available | <30000 | >6 | <7 | x | x | x | x | x | x | x | x | x | |||||

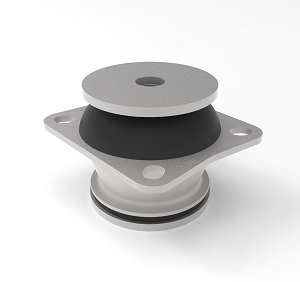

APSOvib® Conical bearings HD High Deflection |
![]() |
Specially designed for mobile devices where large accelerations can occur and only a little installation space is available | <5000 | >6.2 | <6.5 | x | x | x | x | x | x | x | x | ||||||

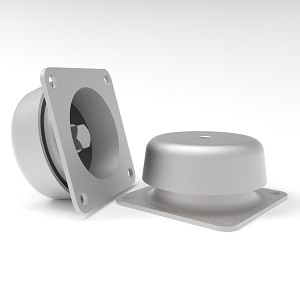

APSOvib® CUPMOUNT Storage elements | ![]() |
Can be used in compression, tension and stear; especially for bearings on vehicles; wall and ceiling mounts | <6480 | >11.8 | <1.8 | x | x | x | x | ||||||||||

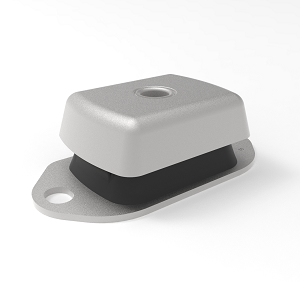

APSOvib® Marine mounts | ![]() |
Designed for shipbuilding, generators and diesel engines | <9400 | >6.5 | <6 | x | x | x | x | x | x | ||||||||

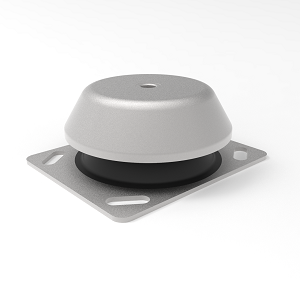

APSOvib® High-efficiency genset mounts | ![]() |
Specially designed for large generators and diesel engines to provide optimal vibration insulation; the built-in protective cap protects the element against splashing water or oil | <42000 | >4 | <16 | x | x | x | x | x | x | x | |||||||

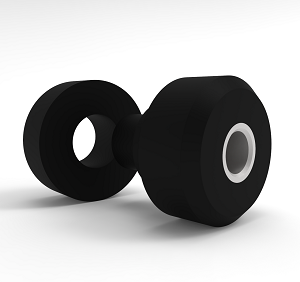

APSOvib® H-Mounts | ![]() |
Safe antivibration support; good insulation against structural noises; designed for cabins | <10000 | >13 | <1.5 | x | x | x | x | x | |||||||||

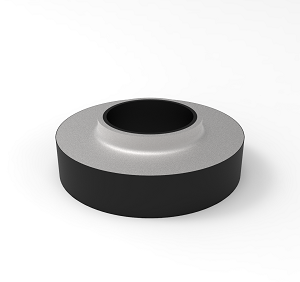

APSOvib® Insulating rings | ![]() |
Suitable for elastic bearings, subjected to traction force; pre-tensioned in pairs against each other | <3720 | >11.5 | <1.9 | x | x | x | x | x |
