APSOvib® Spring elements, air springs, metal springs and gas springs

Spring element assortment for sensitive devices and low frequency

  • Spring elements overview: Air spring
  • Spring elements overview: Air spring

Within the group of spring elements, air springs find their application where regular checks are required, for example in the automotive industry concerning mainly trucks or trailers or for the mounting of sensitive devices. They distinguish themselves through a very low frequency nearly independent of load.


Air springs

Air springs are suitable for passive insulation of scales, gauges and also for active insulation of slow-running devices such as ventilators and compressors.


Air bellows

Air bellows are designed for vibration insulating elements for damping active and passive oscillations of structure-borne noise, vibrations and shocks.


Metal springs

Metal springs are particularly suitable for insulating aggressive shock effects with low interference frequency.


Applications

  • HVAC / Fans
  • Agriculture and construction machinery
  • Genset
  • Pumps and compressors
  • Trucks and special vehicles
  • Machinery and presses
  • Electrical enclosures
  • Laboratory equipments


Product List

Product Image Description Technical data Insulation capacity Key applications  Order
      Load capacity in N Natural frequency in Hz Spring deflection in mm High axial flexibility High radial flexibility High axial and radial flexibility Medium and low frequency Protection against bump & shock HVAC/Fan Agriculture & construction machinery Genset Pumps & compressors Trucks & special vehicles Machinery & presses Electrical enclosures Laboratory equipments

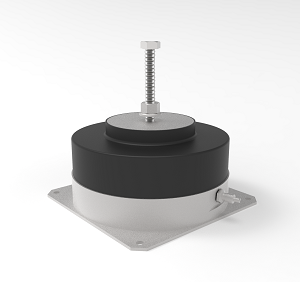

APSOvib® Air springs Suitable for passive insulation of scales, gauges and also for active insulation of slow-running devices such as ventilators and compressors <98100 >2.5 <40 x     x     x     x x x x

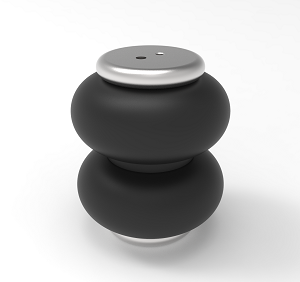

APSOvib® Air bellows Oscillation insulating elements to dampen active and passive oscillations of structure-borne noise, vibrations and thrusts <61000 >1.5 <110 x     x     x     x x

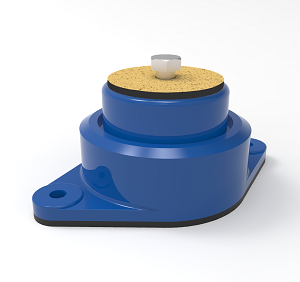

APSOvib® Spring assemblies with sordino damping Suitable for oscillation insulation setup of machines and systems of all kinds; insensitive to spray water; characterized by low natural frequencies and linear spring rates <31400 >2.5 <48 x     x   x         x   x
APSOvib® Spring assembly, HVAC series For vibration insulating installation of equipment; with low natural frequencies and linear spring rates <5000 >3 <30 x     x   x   x x     x
