APSOdrive® Couplings
Reliable couplings for every application
Angst+Pfster is the right partner for any type of drive transmission application. In addition to our timing belt, V-belt and the related pulley portfolio, we can provide you with top quality couplings that can be used in every industrial application with absolute reliability. Thanks to our extensive experience with drive technology, we can advise you to choose the right coupling according to your requirements as:
• Compensation for shaft misalignment
• Compensation for shaft displacement with low restorative forces
• Control of characteristic angular vibration frequency and damping
• Interruption or limitation of torque
• Noise & electrical insulation
Flexible couplings
Flexible couplings are usually used to transmit torque from one shaft to the other when the two shafts are slightly misaligned. Furthermore, a flexible coupling can protect the driving and driven shaft component from the harmful effects of conditions such as misaligned shafts, vibration, shock loads, and thermal expansion. This type of coupling is suitable especially for drives with uniform to average dynamic loads. Examples of applications are pump drives, ventilator drives or crane running gear.
Highly flexible couplings
Due to their low torsional stiffness and good damping capacity, highly flexible couplings are suitable for connecting non-uniformly working machines with high shaft misalignment. An additional plus is the capacity of noise reduction, electrical insulation, as well as compensation of periodical excitation and thermal expansion. Examples of applications are roller tables, pumps, or compressor drives.
Backlash-free couplings
With their high torsional stiffness and ability for angle preserving torque transmission our compact backlash-free couplings are able to achieve the highest positioning accuracy. After the easy installation they are almost completely maintenance- and wear-free and can therefore assure the durability of your drive applications. They are especially suitable for positioning drives, stepping motors and linear units in a wide range of application fields.
Product List
Product | Image | Description | Torque range (in Nm) | Misalignment | Features | Order | |||||||||
Axial | Radial | Angular | Shock load absorption | Vibration damping | Compensation of thermal expansion | Compensation of periodical excitations | Position accuracy | Degree of maintenance | Noise reduction | Electrical insulation | |||||
APSOdrive® Flexible coupling | ![]() |
Flexible couplings | 7.5 - 2400 | M | M | M | M | M | M | M | M | M | x | x | |
APSOdrive® Basklash-free coupling | ![]() |
Backlash-free couplings | 3 - 200 | S | M | M | M | M | L | x | x | ||||

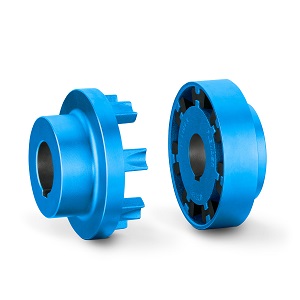

N-EUPEX | ![]() |
Flexible couplings | 19 - 62'000 | M | M | M | M | M | M | M | M | M | x | x | |

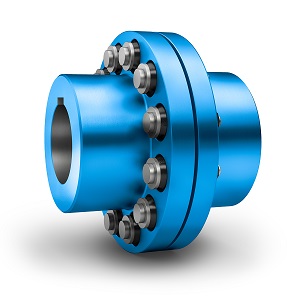

RUPEX | ![]() |
Flexible couplings | 200 - 1'300'000 | M | M | M | M | M | M | M | M | M | x | x | |

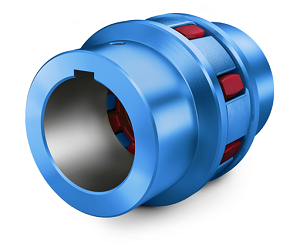

N-BIPEX | ![]() |
Flexible couplings | 12 - 4'650 | M | M | M | M | M | M | M | M | M | x | x | |
HRC | ![]() |
Flexible couplings | 31 - 3'150 | M | M | M | M | M | M | M | M | M | x | x | |

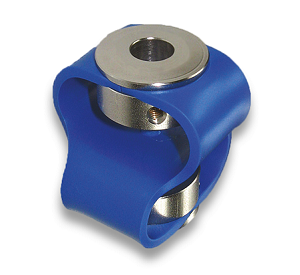

Double Loop | ![]() |
Highly flexible couplings | 0.5 - 5 | L | L | L | L | L | L | L | S | L | x | x | |

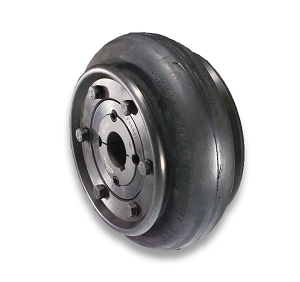

FENAFLEX | ![]() |
Highly flexible couplings | 24 - 14'675 | L | L | L | L | L | L | L | S | L | x | x | |

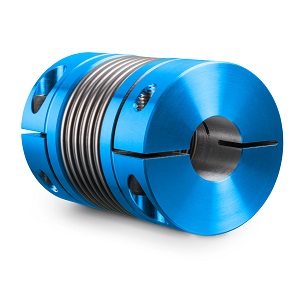

SIPEX | ![]() |
Backlash-free couplings | 0.1 - 5'000 | S | S | S | L | ||||||||

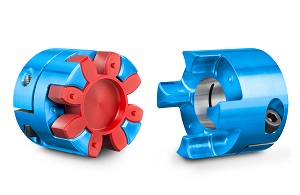

BIPEX-S | ![]() |
Backlash-free couplings | 0.3 - 655 | S | M | M | M | M | L | x | x |
M = Moderate
L = Large
S = Small
