APSOfluid® Agricultural, building and conveyor hoses
Robust hoses for outdoor use
Minimize downtime by chosing a hose made for rough conditions
There are three main applications in this product group, namely hoses for agriculture and for the building industry as well as universal hoses. These hose lines are mostly used in the outdoor area, so they are robustly made with abrasion, ozone and weather resistant material.
Applications
- Agricultural industry
- Construction machinery industry
- Building technology
- Ventilation technology
Hoses for agriculture
Hoses for transporting agricultural products such as milk, fruit juices or grain can be found on the page regarding Food & Beverage Hoses. For irrigation, drainage or manure distribution, you will find a range of hoses to choose from in the table above, for example light rollable or unrollable hoses with large nominal diameters up to DN150. In the area of pesticides our hoses comply with the EN ISO 1401 standard. For the suction or transport of solids such as seeds for sowing, wood chips and sawdust, Angst+Pfister offers a variety of AIRSPIR® spiral hoses.
Hoses for the building industry
During the building phase, hoses are needed to for instance transport cement, sand, gravel, lime, concrete or mortar. Depending on the material to be conveyed, there are corresponding wear-resistant hoses in our assortment. For paints, alkyd resin varnishes, dispersion paints, spirit varnishes and polyester varnishes we have hoses with resistant material. Our rollable hoses (building authority and sprinkler car hoses) can be used for street and sewer cleaning. For road construction, for example for transporting hot bitumen or tar, our BITUFLEX hose is perfectly suited and meets the EN 13482 standard.
Conveyor hoses for universal uses
Hoses are also often used in the building industry to convey water, process water and waste water. Universal hoses, which we offer in different operating pressures, are suitable for such applications.
Ventilation hoses
In order to be able to fulfill as many possible applications within the building industry, we also have various ventilation hoses with or without fire behavior according to DIN 4102.
Product List
| Product | Image | Description | Technical data | Key applications | Order | |||||||||
|
Outer Ø range (in mm) |
Inner Ø range (in mm) |
Material |
Operating temperature range (in °C) | Operating pressure range (in bar) |
Norms / conformities |
Agricultural industry | Construction machinery industry | Building technology | Ventilation technology | Other industries | ||||

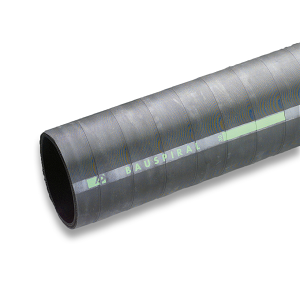

| BAUSPIRAL |  |
Robust, flexible suction and pressure hose | 63 - 170 | 50 - 150 | NR / SBR | -20 to +70 | 6 - 10 | x | x | x | ||||

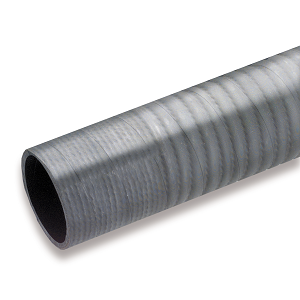

| AGRISPIRAL |  |
Robust, flexible suction and discharge hose in fixed lengths, smooth, spiral-free socket ends on both sides for easier fitting assembly | 62 - 166 | 50 - 150 | NR / SBR | -20 to +70 | 3 | |||||||

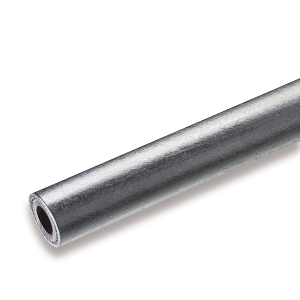

| ALTIPLUS CF |  |
Robust elastomer pressure hose, for spraying plant protection products for fungus and weed killing, crop dusting, etc. | 16 - 20.5 | 8 - 12 | SBR | -30 to +70 | 60 | EN ISO 1401/B/C | x | x | x | |||

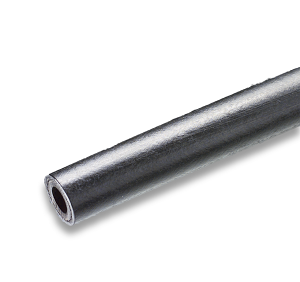

| Tree spraying hose |  |
Robust elastomer pressure hose, for spraying plant protection products for fungus and weed killing, crop dusting, etc.; high conveying capacity and operational reliability even under the toughest conditions; excellent tear resistance of the hose connections; good resistance to ageing and ozone | 16 - 26.5 | 8 - 16 | SBR | -30 to +70 | 40 - 60 | EN ISO 1401/B/C | x | x | x | |||

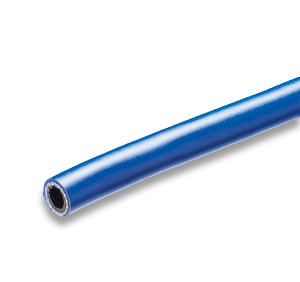

| Tree spraying hose PVC |  |
Flexible hose made of food-grade PVC with double reinforcement of polyester fabric; the inside and outside are smooth and resistant to many chemicals, ozone and weather conditions | 15 - 22 | 8 - 13 | PVC-P | -15 to +60 | 80 | x | x | x | ||||

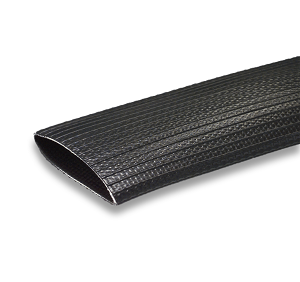

| PRESSFLAT |  |
Powerful hose for conveying water; 100% synthetic polyester fabric made of high-strength yarn, embedded in a compact, vulcanized rubber coating made of special polymers; excellent abrasion resistance due to longitudinal grooves on the outer rubber; additionally, the hose offers high resistance to alkalis, salt solutions, acids, oil, petrol and fuel | 42 - 156 | 38 - 150 | NBR PVC | -20 to +70 | 10 - 17 | x | x | x | x | |||

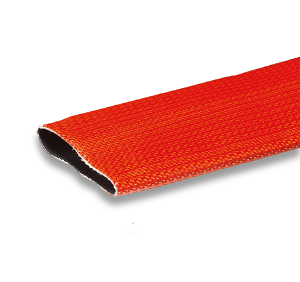

| FIREFLAT |  |
Flat roll-up multi-purpose-water hose for irrigation and drainage, with polyurethane-relief coating | 41 - 107 | 38 - 102 | EPDM TPE-U |
-30 to +70 |
16 15 - 17 |
x | x | x | x | |||

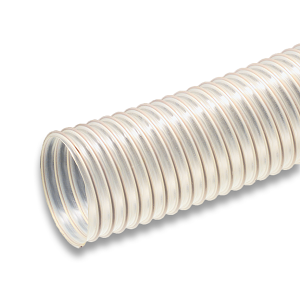

| AIRSPIR |  |
Extremely flexible and robust foil hose with high abrasion resistance and integrated, welded-in support spirale | 44 - 322 | 32 - 315 | Ester-Polyurethan, corrugated | -40 to +100 | 0.1 - 3 | - TRGS 727 - ATEX 2014/34/EU (Ex II 2G / 2D) |
x | x | x | |||

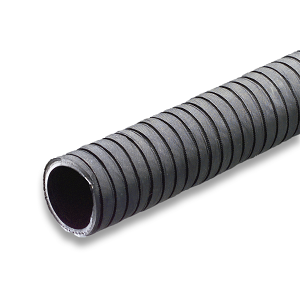

| CORDAFLEX |  |
Flexible, robust suction hose; excellent suitability for conveying abrasive, non-aggressive liquids and liquids with suspended solids; can be used for most applications, but especially suitable for the construction sector | 30 - 69 | 22 - 60 | NR | -30 to +70 | 7 | x | x | x | ||||

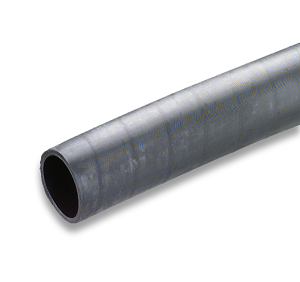

| ZEMENTO |  |
Pressure hose for conveying highly abrasive media such as cement, gravel, sand, granulate, pellets, etc.; long service life due to abrasion-resistant inliner quality | 89 - 126 | 75 - 110 | NR / BR | -30 to +80 | 5 - 10 | x | x | x | ||||

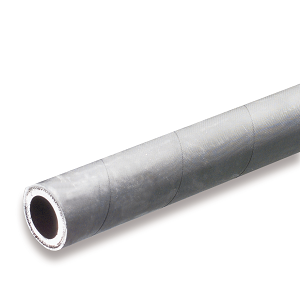

| INJECTO |  |
Mortar injector hose for spraying dry mortar, plaster and similar materials or for conveying fine concrete, sand, fine gravel etc.; easy handling due to low weight and small bending radii, highly abrasion-resistant and conductive hose inliner, that increases the safety of the user | 38 - 68 | 25 - 50 | NR / BR | -25 to +80 | 40 | x | x | x | ||||

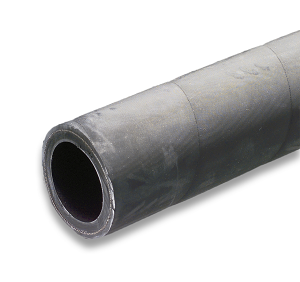

| NEVADA |  |
Robust hose with excellent abrasion resistance for the building industry; the electrically conductive inliner and outliner allow higher conveying speeds of abrasive products; due to the electrical conductivity of the inliner and outliner the hose can be used in ATEX zones | 30 - 85 | 19 - 65 | NR / SBR | -25 to +70 | 10 | x | x | x | ||||
| TRANSAP |  |
Versatile, flat rollable, lightweight pressure hose with highly abrasion resistant inliner; suitable for conveying highly abrasive bulk materials such as cement, sand and gravel in dry or pulpy condition | 85 - 210 | 75 - 200 | BR / NR / SBR | -25 to +80 | 5 - 7 | x | x | x | ||||

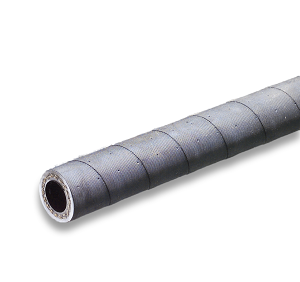

| BITUFLEX |  |
Can be used as tar spray hose up to +180°C; the construction with a steel wire braid and a textile braid insert above it ensures good ceiling adhesion and thermal insulation; electrical conductivity: resistance R < 106 Ohm | 31 - 39 | 19 - 25 | NBR | -35 to +180 | 40 | EN 13482 | x | |||||

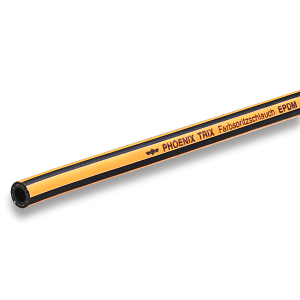

| COLORPRESS |  |
The paint spray hose EPDM and NBR is the ideal working tool for paint shops, shipyards, painting companies and industrial users; it is twist-free, kink-resistant and, with its smooth inner layer particularly suitable for conveying spirit varnishes, nitrocellulose varnishes, chlorinated rubber varnishes, polyurethane varnishes, epoxy varnishes, emulsion paints and many other materials used in painting | 16 | 9 | NBR EPDM |
-20 to +80 -40 to +100 |
25 10 |
x | x | |||||

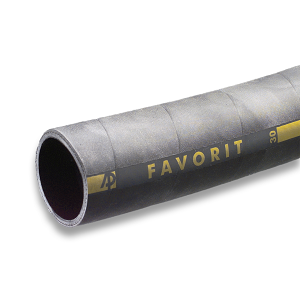

| FAVORIT |  |
Building and sprinkler truck hose; durable, flat rollable pressure hose | 42 - 65 | 32 - 55 | BR / NR / SBR | -30 to +80 | 13 | x | x | x | ||||

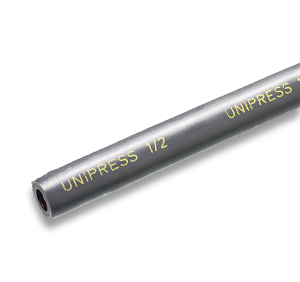

| UNIPRESS |  |
Black hydraulic hose with fabric insert for hydraulic fluids, gasoline and oil; for use as a return hose in hydraulic systems, but also suitable for medium pressure systems | 12.8 - 36.2 | 4.8 - 25.4 | NBR | -40 to +100 | 15 - 20 | x | x | |||||

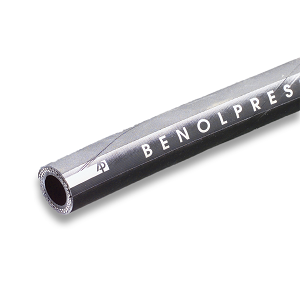

| BENOLPRESS |  |
Universally applicable quality high-pressure hose with excellent flexibility; pressure hose for the transport of mineral oil products and fuel mixtures with an aromatic content of up to 50% | 36 - 174 | 28 - 160 | NBR | -40 to +100 | 40 - 50 | x | x | |||||

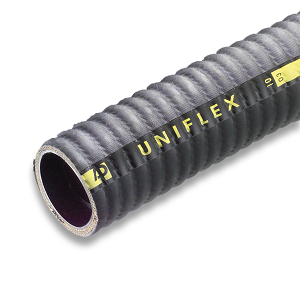

| UNIFLEX |  |
Robust, extremely flexible suction and pressure hose in proven quality | 29 - 172 | 20 - 150 | NBR | -20 to +80 | 10 - 18 | x | x | x | x | x | ||

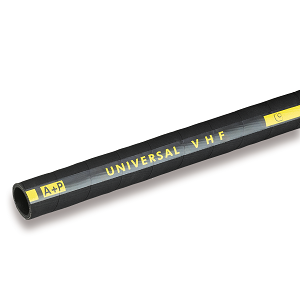

| UNIVERSAL VHF |  |
Highly flexible suction and pressure hose with oil-resistant inner layer; also suitable for fuels with max. 40% aromatic content | 28 - 170 | 20 - 152 | NBR | -25 to +80 | 8 - 10 | x | x | x | x | x | ||

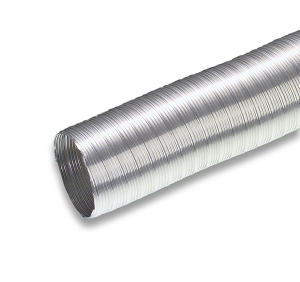

| METADUCT-N |  |
Flexible, twisted ventilation pipe, with 2-layer corrugation | 60 - 200 | Aluminium | -40 to +200 | - I24DIN EN 13180 - not flammable according to DIN 4102 class A1 |
x | x | ||||||

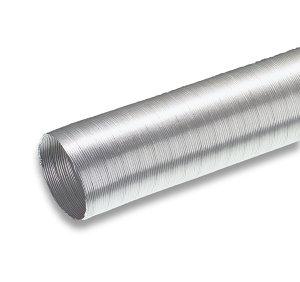

| OHLER-FLEXTUBE Typ A-A |  |
Fully flexible ventilation pipe, designed for smallest bending radii, with three layers and fine corrugation | 42 - 200 | Aluminium | -40 to +200 | not flammable according to DIN 4102 class A1 | x | x | ||||||

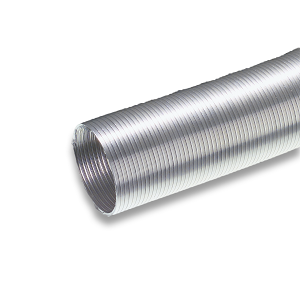

| OHLER STRETCH |  |
Compressed, flexible, twisted ventilation pipe for low transport and storage costs, with 2-layer corrugation | 80 - 300 | Aluminium | -40 to +200 | - DIN EN 13180 - not flammable according to DIN 4102 class A1 |
x | x | ||||||

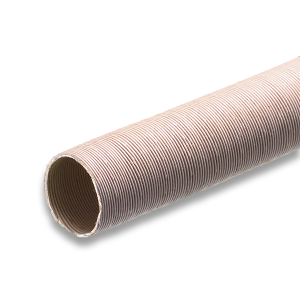

| OHLER-FLEXTUBE Typ P-A-P |  |
Fully flexible, three-layer, fine-twisted ventilation pipe, designed for smallest bending radii, made of paper and aluminum strips, noise isolating | 40 - 100 | Paper / Aluminium | -40 to +1100 | no rate of burn according to DIN 75200 and FMVSS 302 | x | x | ||||||
