Laboratory hoses
Flexible application use by meeting all industry standards
In addition to our FLEXILON® plastic pipes, we have a wide range of hoses, mostly without inserts, made of different elastomers and thermoplastics. Although they are specifically designed for laboratory use, these hoses can also be used quickly and easily for other applications such as medical technology, process engineering, chemical engineering, pharmaceutical engineering, measurement and control technology. Even within the laboratory industry, there are many different requirements and areas of application that our hoses can meet. For example, they can also be used for pilot plants in the pharmaceutical and chemical industries.
Depending on the required resistance, there are various hose materials to choose from, such as FKM, VMQ, NBR, CR, NR, PVC-P and PTFE (insulating hose, heat-resistant). Our hoses meet all typical requirements of the pharmaceutical or food industry such as USP Cl. VI or FDA.
In analytical or online measuring devices, there is usually a peristaltic pump which is used for sampling. For this specific application we also have a solution – a silicone hose with special properties for a long service life.
Applications
- Chemical industry
- Pharmaceutical industry
- Food and beverage industry
- Packaging industry
Product List
| Product | Image | Description | Technical data | Key applications | Order | |||||||||
|
Outer Ø range (in mm) |
Inner Ø range (in mm) |
Material |
Operating temperature range (in °C) | Operating pressure range |
Norms / conformities |
Chemical industry | Pharmaceutical industry | Food & beverage industry | Packaging industry | Other industries | ||||

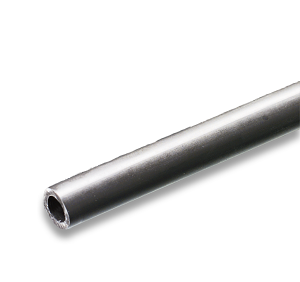

| VITOLIT |  |
Flexible FKM hose without insert, for pressureless use and for the highest temperatures, with very good chemical resistance | 4 - 18 | 2 - 12 | FKM | -20 to +200 | pressureless | - ISO 1307 - DIN 7715 |
x | x | x | x | ||

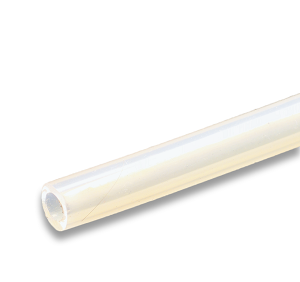

| SIKOLIT NSF |  |
For pressureless use even at extremely high or very low temperatures; thanks to thermal post-treatment physiologically harmless, odorless and tasteless | 3 - 31 | 1 - 25 | VMQ | -50 to +180 | pressureless | - ISO 1307 - DIN 7715 - FDA - USP Cl. VI - NSF/ANSI 51 - ISO 10993 |
x | x | x | x | x | |

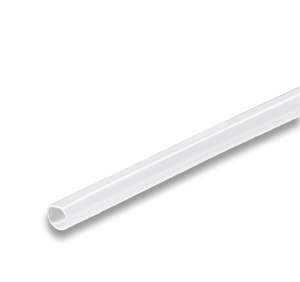

| Silicone hose, Typ SF 1303 |  |
Silicone hose in medical quality without insert in inch dimensions | 0.64 - 4.65 | 0.3 - 3.35 | VMQ, platine-net | -54 to +204 | pressureless | - FDA - USP Cl. VI |
x | x | ||||

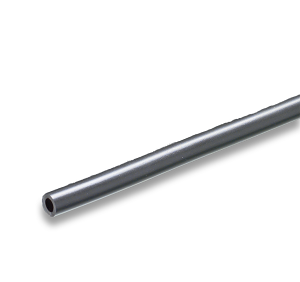

| BUNALIT E65 |  |
Nitrile rubber hose in metric dimensions for general use, oil and petrol resistant | 6 - 17 | 3 - 12 | NBR | -25 to +80 | pressureless | - ISO 1307 - DIN 7715 |
x | x | x | |||
| BUNALIT E75 |  |
High value nitril-rubber-hose in inch-dimensions | 6.4 - 25.4 | 3.2 - 19 | NBR | -20 to +100 | pressureless | - ISO 1307 - DIN 7715 |
x | x | x | |||

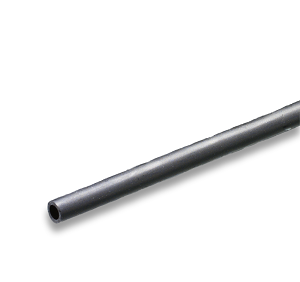

| NEOLIT |  |
Universal applicable neoprene-hose | 7 - 28 | 4 - 20 | CR | -30 to +200 | pressureless | - ISO 1307 - DIN 7715 |
x | x | x | |||

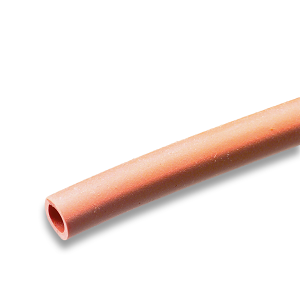

| PARALIT |  |
Natural rubber hose for general laboratory applications | 3 - 20 | 1 - 16 | NR | -40 to +80 | pressureless | - ISO 1307 - DIN 7715 |
x | x | ||||

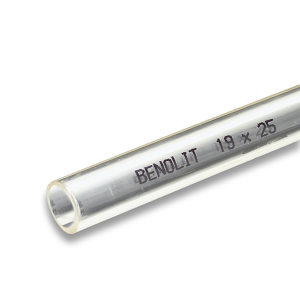

| BENOLIT |  |
Transparent multipurpose hose with high petrol and oil resistance | 4 - 30 | 2 - 24 | PVC-P | -15 to +60 | pressureless | - DIN 16940 | x | x | ||||

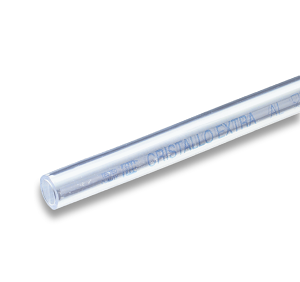

| KRISTALIT |  |
Blueish, transparent soft PVC-hose, not petrol and oil resistant | 6 - 32 | 3 - 25 | PVC-P | -20 to +60 | pressureless | - DIN 16940 | x | x | ||||
| VINILIT |  |
Transparent universal quality, not resistant to petrol and oil | 4 - 70 | 2 - 60 | PVC-P | -20 to +60 | pressureless | - DIN 16940 | x | x | ||||

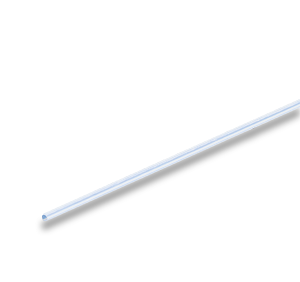

| Insulating hose AWG 0-9, AWG 10-20, AWG 22-30 |  |
Thin-walled hose with excellent characteristics with regards to electrical insulation, temperature and chemical resistant; for high temperature, high frequency and high voltage insulations, inert, non-toxic drainage tubes for the medical technology and transport of presureless, aggressive gases and liquid fluids in the chemical and medical industries | 0.76 - 9.4 | 0.9 - 8.38 | PTFE | -200 to +260 | pressureless | - FDA | x | x | x | x | x | |
