APSOfluid® Hoses for mineral oil and gas

Safe and durable hose lines for all oil & gas applications

  • Mineral oil and gas hoses overview: OXY™ twin autogenous hose in blue and red
  • Mineral oil and gas hoses overview: OXY™ twin autogenous hose in blue and red

Specific fluid solutions for transferring different media

This hose group is easiest divided according to media: a distinction can be made between hoses for fuels such as oils, petrol, diesel or biodiesel, flammable gases for welding equipment and liquid gases (LPG, MPS, natural gas and methane).


Applications

  • Petrochemical industry
  • Vehicle construction
  • Welding equipment
  • Commercial and household


Hoses for fuels

Hoses for fuels made of NBR are reinforced with inserts of synthetic fabrics for certain operating pressures and are often used as fuel dispenser or tanker hoses. Depending on the requirements, the hoses comply with the standards EN 1361 E; EN 12115, VG 95955 Type D and S. We also supply complete hose lines with tanker couplings such as KOMBIFEKT®, KAMLOK® or AUTOLOK® couplings.


Hoses for flammable gases in welding equipment

The hose series for welding equipment consists of robust special hoses for the welding technology (welding, cutting and similar processes) and complies with the standards EN ISO 3821:2010 and EN 559:2003. These hoses have different colors for specific media:
• Red for acetylene and other fuel gases
• Blue for oxygen
• Black for welding shielding gases (compressed air, nitrogen, argon, carbon dioxide)


Hoses for liquid gases

Hoses for liquid gases (LPG, MPS, natural gas and methane) are very robust, used in the industry and households and also comply with EN ISO 3821:2010 and EN 559:2003 standards.

Product List

Product Image Description Technical data Key applications  Order


Outer Ø range (in mm)

Inner Ø range (in mm)

Material

Operating temperature range (in °C) Operating pressure range (in bar)

Norms / conformities

Petrochemical industry Vehicle construction Welding equipment Commercial and household Other industries

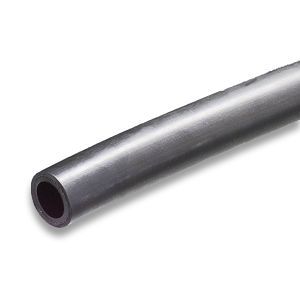

PETROLPRESS High quality special hose for petrol up to max. 50% aromatics, diesel fuel and heating oil 20 - 35 13 - 25 NBR -25 to +80 10   x x     x

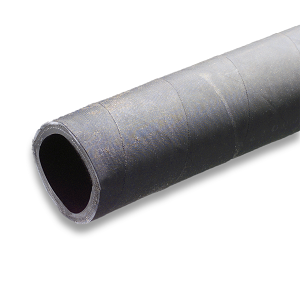

Tank truck hose Suction and pressure hose for loading and unloading tank vehicles 35 - 87 25 - 75 NBR -50 to +70 10   x x

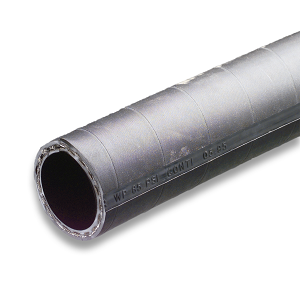

Tank truck hose Type TW High quality fuel and mineral oil pressure hose 37 - 91 25 - 75 NBR -30 to +90 20 - EN 1361 E
- EN 12115
- VG 95955 Type S
x x

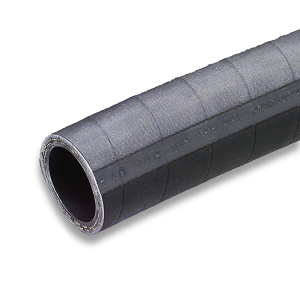

High pressure tank hose Type HD High quality fuel and mineral oil pressure hose 37 - 51 25 - 38 NBR -30 to +90 25 - EN 12115
- VG 95955 Type D
x x
SOUDOPRESS Flexible special hose for welding technology and for smaller systems (welding, cutting and related processes)
Red: for acetylene and other fuel gases (except LPG, MPS, natural gas, methane)
Blue: for oxygen
12 5 EPDM / SBR

-30 to +80

20 - EN ISO 3821:2010
- EN 559:2003
    x x

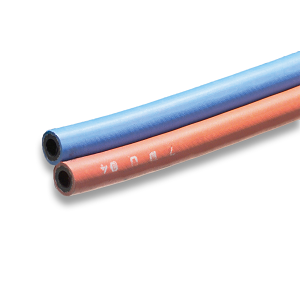

OXY (autogenous welding hose) Special hose for welding technology (welding, cutting and related processes) in smaller plants
Red:  for acetylene and other fuel gases (except LPG, MPS, natural gas, methane)
Blue: for oxygen
13.3 -  17.3 6.3 - 10 EPDM / SBR / NR -30 to +80 20 - EN ISO 3821:2010
- EN 559:2003
    x x

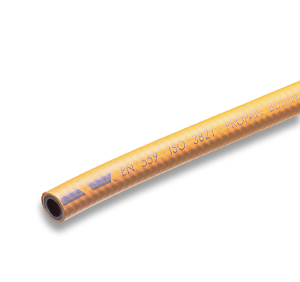

BUTAPRESS Robust special hose for industry, trade and household and media such as LPG, Propane or Butane 13.3 - 15 6.3 - 8 NBR -30 to +80 20 - EN ISO 3821:2010
- EN 559:2003
      x x
