APSOseal® O-Rings
For all applications – from one source
A comprehensive o-ring assortment
For more than 100 years, O-rings have been established as the preferred sealing elements in all branches of industry thanks to their simple geometry and high sealing performance. Angst+Pfister's range of O-rings covers the entire spectrum from high-performance elastomers to materials for standard applications – all at an excellent price-performance ratio. Additionally, Angst+Pfister also offers optimal sealing solutions for highly specific applications. Angst+Pfister is constantly expanding its product range and is thus successfully meeting the continuously increasing demands with regards to media and temperature resistance.
Applications
- Food and beverage industry
- Process industry
- Drinking water
- Pharma, medical and healthcare
- Chemical industry
- General machine industry
- Oil and gas
Product List
Product | Description | Technical data | Approvals & Conformities | Key applications | Order | |||||||||||||||||||||||||||||||||||||||||
|
Material | Colour | Hardness (Shore A +/-5) |
Temperature (°C) (short-term) |
3-A Sanitary | ACS/CLP | ADI free | AS/NZS | BAM | BfR | Cognac by BNIC | D.M. 06/04/04 n° 174 | D.M. 21/03/1973 | Dutch Commodities Act - Chapter III |
DVGW EN 681-1 | DVGW DIN 682 | DVGW W 270 | DVGW W 534 | DVGW 549 | EC 1935/2004 | FDA | French Arreté | GB 4806.11 | GMC/RES N°28/99 | KIWA (BRL-K17504) | KTW | LFGB | NORSOK M710 | NSF 51 | NSF 61 | ÖNORM B 5014-1 | PAH Category | REACH (EC) No 1907/2006, Annex XIV |
RoHS 2011/65/EU & 2015/863/EU |
UBA | USP | WRAS | Food & Beverage | Process Industry | Drinking Water | Pharma, Medical & Healthcare | Chemical Industry | General Machine Industry | Oil & gas | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kalrez® 0040 |
Kalrez® 0040 has excellent low temperature properties and a high elasticity. This compound has been specially developed for applications where high chemical resistance at very low temperatures is required. | FFKM | black | 70 | -42 to +220 | × | × | × | ||||||||||||||||||||||||||||||||||||||
Kalrez® 6221 | Kalrez® 6221 specially developed for the food and pharmaceutical industry. Resistance to CIP/SIP media is a feature of this material. Lowest extraction values in all common media of these industries complement the broad chemical resistance. | FFKM | white | 70 | -10 to +260 | × | × | × | × | × | × | × | × | |||||||||||||||||||||||||||||||||
Kalrez® 6230 | Kalrez® 6230 specially developed for the food and pharmaceutical industries. Resistance to CIP/SIP media is a feature of this material. Lowest extraction values in all common media of these industries complement the broad chemical resistance. | FFKM | black | 75 | -10 to +260 | × | × | × | × | × | × | × | × | |||||||||||||||||||||||||||||||||
Kalrez® 6375 | Kalrez® 6375 offers excellent performance in contact with a wide range of chemicals and over a wide temperature range. The product is an excellent choice for applications in acids. | FFKM | black | 75 | -20 to +275 | × | × | |||||||||||||||||||||||||||||||||||||||
Kalrez® 4079 | Kalrez® 4079 is a black, soot-filled compound and a reliable sealing material for the chemical industry. This material has been specially developed for high temperature applications. | FFKM | black | 75 | -10 to +316 | × | × | |||||||||||||||||||||||||||||||||||||||
Kalrez® 7075 | Kalrez® 7075 has excellent mechanical properties and a very low compression set, even at extreme temperatures. This compound was developed especially for the chemical industry, which has to reliably seal highly aggressive media at very high temperatures. | FFKM | black | 75 | -10 to +327 | × | × | |||||||||||||||||||||||||||||||||||||||
PERTEC® CIP FKM 75.501-04 | PERTEC® CIP FKM was developed for use wherever the Cleaning in Place (CIP) or Sterilisation in Place (SIP) process is used. It has a broad resistance to chemicals, cleaning media and also to high temperatures and grease concentration. PERTEC® CIP FKM meets all the necessary regulations for the food, pharmaceutical and medical industries. It is a low-friction compound for dynamic applications. | FKM | sky blue | 75 | -15 to +200 | × | × | ∎ | × | × | ∎ | × | × | ∎ | ∎ | ∎ | × | ∎ | 1 | × | × | × | × | × | × | × | ||||||||||||||||||||
PERTEC® ST FKM 75.501-02 | With PERTEC® ST FKM, Angst+Pfister has developed a high-performance elastomer that is characterized by high resistance to steam and hot water. | FKM | black | 75 | -15 to +200 | × | × | × | ||||||||||||||||||||||||||||||||||||||
PERTEC® UP FKM 70.501-07 | With PERTEC® UP FKM - UP means "Ultrapure" - Angst+Pfister has developed a new high-performance material of the PERTEC® family which is especially suitable for applications where absolute purity of the material is indispensable. It has the most important approvals in the food sector. | FKM | black | 70 | -20 to +200 | × | × | ∎ | × | × | ∎ | × | × | × | ∎ | ∎ | ∎ | × | ∎ | 1 | × | × | × | × | × | × | × | × | × | × | × | |||||||||||||||
PERTEC® UP VMQ 70.501-01 | With PERTEC® UP VMQ - UP means "Ultrapure" - Angst+Pfister has developed a new high-performance material of the PERTEC® family which is especially suitable for applications where absolute purity of the material is indispensable.. It has the most important approvals in the food sector. | VMQ | trans-lucent | 70 | -60 to +200 | × | × | × | × | × | × | × | × | × | × | × | × | × | ∎ | 1 | × | × | × | × | × | × | × | × | × | |||||||||||||||||
PERTEC® UP EPDM 70.503-04 |
This EPDM material with most relevant approvals for foodstuffs has good media resistance to brake fluids, acids and alkalis, the flameretardant hydraulic fluids HFC and HFD as well as hot water, steam and CIP medias - but is not resistant to mineral oils and greases, petrol and hydrocarbons. | EPDM | black | 70 | -40 to +150 | × | × | × | × | × | × | × | × | × | × | 1 | × | × | × | × | × | |||||||||||||||||||||||||
EPDM 60.10-04 | Peroxide cross-linked slightly softer EPDM material with approvals for drinking water. | EPDM | black | 60 | -40 to +130 | ∎ | × | × | × | × | × | × | × | × | ||||||||||||||||||||||||||||||||
HITEC® DW EPDM 70.503-00 |
This EPDM material with most relevant approvals for drinking water (including new KTW-BWGL) has good media resistance to brake fluids, acids and alkalis, the flame-retardant hydraulic fluids HFC and HFD as well as hot water and steam - but is not resistant to mineral oils and greases, petrol and hydrocarbons. | EPDM | black | 70 | -57 to +150 | × | × | × | × | × | × | ∎ | × | × | × | ∎ | × | × | × | × | × | 1 | × | × | × | × | × | × | × | × | × | × | × | |||||||||||||
EPDM 70.502-03 | This EPDM material with many approvals for drinking water and foodstuffs has good media resistance to brake fluids, acids and alkalis, the flame-retardant hydraulic fluids HFC and HFD as well as hot water and steam - but is not resistant to mineral oils and greases, petrol and hydrocarbons. | EPDM | black | 75 | -51 to +150 | × | × | × | × | × | × | × | ∎ | ∎ | × | × | × | × | × | × | × | × | × | × | × | × | ||||||||||||||||||||
FKM 70-501-05 | FKM material for low temperature applications with very good resistance to media, ozone and ageing. | FKM | black | 70 | -30 to +200 | × | × | × | × | |||||||||||||||||||||||||||||||||||||
HITEC® FKM 75-16.04 | The HITEC® FKM has a very good resistance to media, ozone and ageing and the connection is specially designed for food, gas and pharmaceutical applications. The material is also resistant to fuels, mineral oils and greases as well as aliphatic and aromatic hydrocarbons. | FKM | black | 70 | -25 to +200 | × | ∎ | × | ∎ | × | × | × | ∎ | 2 | × | × | × | × | × | × | × | × | ||||||||||||||||||||||||
FKM 75-16.18 | FKM material for high temperature applications with very good resistance to media, ozone and ageing. | FKM | black | 75 | -25 to +250 (275) |
× | × | × | ||||||||||||||||||||||||||||||||||||||
FKM 85-501.01 | FKM material for low temperature applications and high pressures with very good resistance to media, ozone and ageing. | FKM | black | 85 | -40 to +200 | × | × | × | ||||||||||||||||||||||||||||||||||||||
FKM 90-15.04 | FKM material designed for oil and gas applications, meeting NORSOK M710 approval (explosive decompression) and NACE TMO 187 for sour gas. | FKM | black | 90 | -50 to +225 (250) |
× | × | × | × | |||||||||||||||||||||||||||||||||||||
FVMQ 70.16-01 | Fluorosilicone material with excellent low temperature properties and broad chemical resistance. Meets automotive standard R110(5D-5F-5G)R67(15 par11-13-14) and military MIL-DTL-25988C Class I Type II Grade 70 11-08-06. | FVMQ | blue | 70 | -60 to +200 | × | × | × | × | |||||||||||||||||||||||||||||||||||||
HNBR 70-10.09 | HNBR material with good ozone and ageing resistance as well as against hot water and various oils. This mixture has the required gas approvals. | HNBR | yellow | 70 | -40 to +150 | × | × | × | × | × | ||||||||||||||||||||||||||||||||||||
HNBR 70-15.06 | HNBR material for low temperature applications with good ozone and ageing resistance as well as hot water and various oils. | HNBR | green | 70 | -45 to +150 | × | × | × | ||||||||||||||||||||||||||||||||||||||
HNBR 70-502.03 | HNBR material for low temperature applications with good ozone and ageing resistance as well as against hot water and various oils. | HNBR | black | 70 | -40 to +150 | × | × | × | ||||||||||||||||||||||||||||||||||||||
NBR 60-10.01 | NBR material with good resistance to mineral oils and greases, water and glycols, which is suitable for gas applications. | NBR | black | 60 | -30 to +125 | × | × | × | × | |||||||||||||||||||||||||||||||||||||
HITEC® |
High-quality NBR material with approvals in the food and beverage industry and for gas applications. This NBR material also has a high resistance to mineral oils and greases, water and glycols. | NBR | black | 70 | -20 to +125 | × | × | × | ∎ | × | × | × | × | ∎ | × | × | 2 | × | × | × | × | |||||||||||||||||||||||||
NBR 70-502.02 | Low temperature NBR material with good resistance to mineral oils and greases, water and glycols. | NBR | black | 70 | -50 to +100 | × | × | × | × | × | ||||||||||||||||||||||||||||||||||||
NBR 90-10.03 | NBR material with good resistance to mineral oils and greases, water and glycols, which is suitable for high pressure applications. | NBR | black | 90 | -30 to +100 | × | × | × | ||||||||||||||||||||||||||||||||||||||
VMQ 60-501-01 | Silicone elastomer with good mechanical properties over a wide temperature range. | VMQ | black | 60 | -50 to +200 | × | × | × | × | × | ||||||||||||||||||||||||||||||||||||
HITEC® VMQ 70-10.01 |
Silicone elastomer with good mechanical properties over a wide temperature range. This compound is resistant in hot air and ozone, in water, in animal and vegetable oils and fats. | VMQ | red-brown | 70 | -55 to +200 (230) |
× | × | × | × | × | × | × | × | ∎ | × | 1 | × | × | × | × | × | × | × | × | ||||||||||||||||||||||
VMQ 80-501.01 | Platinum crosslinked silicone elastomer with good mechanical properties over a wide temperature range. | VMQ | trans-parent | 80 | -50 to +200 | × | × | × |
× = Approval
∎ = Approval with restriction, please request the corresponding data sheet for more details.
Kalrez® is a DuPont™ brand. DuPont™, the DuPont Oval Logo, and all trademarks and service marks denoted with ™ or ® are owned by affiliates of DuPont de Nemours, Inc.
The information provided by Angst+Pfister regarding testing and engineering capabilities on our website is for general informational purposes only. All information on the site is provided in good faith, however we make no representation or warranty of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, availability or completeness of any information displayed. Your reliance on any information depicted above is solely at your own risk, and we encourage you to consult with the appropriate professional before taking any actions based on it.

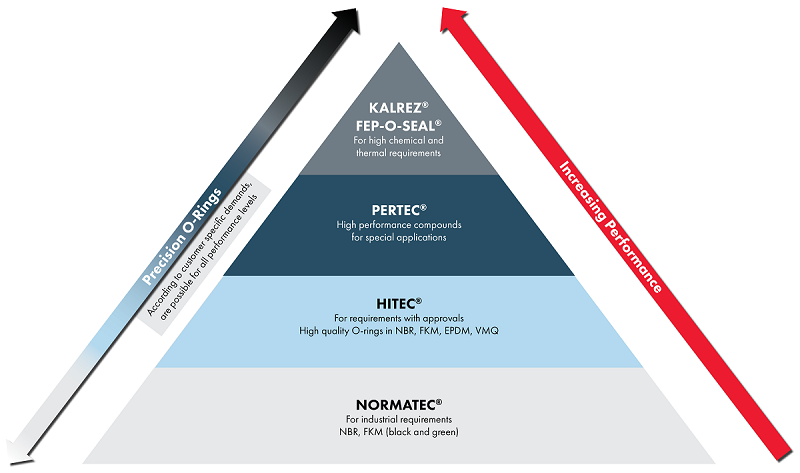

O-rings made of high-performance materials
O-rings from our high-performance range meet the highest demands of sealing performance and are characterised by exceptional chemical and thermal resistance.
Kalrez® perfluoro elastomers (FFKM)
Where conventional materials fail, Kalrez® perfluoro elastomers (FFKM) represent the most cost-effective and reliable solution in the long-term with regards to total cost. They have a unique application behaviour not matched by any other elastomer material! Kalrez® synthetic rubber in the various compounds combines the elasticity and sealing force of a genuine elastomer with the chemical resistance of PTFE.
Kalrez® O-rings are resistant to almost all chemicals and can be used at temperatures of +350°C for short periods or +327°C in continuous operation. They are also available with FDA or USP VI approvals. As an authorized distributor of DuPont Performance Polymers, Angst+Pfister has a wide range of Kalrez® O-rings and has direct access to special dimensions.
Kalrez® O-rings (FFKM) are mainly used in the process industry, pharmaceutical industry, chemical industry, semiconductor technology and in the oil and gas industry.
Kalrez® is a DuPont™ brand. DuPont™, the DuPont Oval Logo, and all trademarks and service marks denoted with ™ or ® are owned by affiliates of DuPont de Nemours, Inc.
PERTEC® – O-rings made of high-performance elastomers
Our PERTEC® O-rings are made from high-performance materials suitable for specific, particularly challenging industries and shine with properties such as high media resistance and numerous approvals.
The demands on high-performance materials for applications in various industries are becoming increasingly challenging. While the vacuum industry requires materials with low permeability and very good abrasion resistance, and the drilling oil industry high tensile strength and hardness, in the electronics industry low metal ion release is essential.
Our PERTEC® O-rings are also perfectly suited for use in CIP systems (Cleaning in Place) and SIP systems (Sterilization in Place), where a very high level of hygiene is essential for the application, as well as in the food, pharmaceutical, medical and chemical industries.
Materials of the PERTEC® family are characterized by an above-average performance in terms of friction behavior, are extremely resistant to chemicals and steam, and have many approvals for almost all core industries. In order to stay competitive, we continuously adapt the product range to the latest technologies and challenges.
FEP-O-SEAL® O-rings
The FEP-O-SEAL® seals ideally combine the elastic characteristics of elastomer O-rings and the chemical resistance of FEP or PFA. FEP-O-SEAL® O-rings consist of two components: a seamless covering of FEP or PFA (1) and an elastomer core (2) that guarantees dimensional stability.
There are numerous applications where the use of traditional elastomers causes failure. Aggressive chemicals or extreme temperatures can destroy conventional elastomer O-rings which can ultimately lead to leakage. FEP-O-SEAL® O-rings are therefore used in a wide variety of applications in many industry sectors, but in particular, where ordinary elastomers fail due to these aggressive fluids, like the chemical industry, petrochemical industry, foodstuffs industry, pharmaceuticals, mechanical seals and filtration industries.
FEP-O-SEAL® O-rings are pressure resistant and guarantee a deep compression set with much lower cold flow compared to PTFE.
For static sealing points, such as flange connections in chemical apparatus engineering, non-elastic PTFE O-rings are the first choice when it comes to universal, robust sealing against aggressive liquids. Media with temperatures from -270 to +980°C and at pressures of high vacuum up to 6800 bar can only be sealed perfectly with metal seals (O-rings and C-rings) – if necessary, with coating.

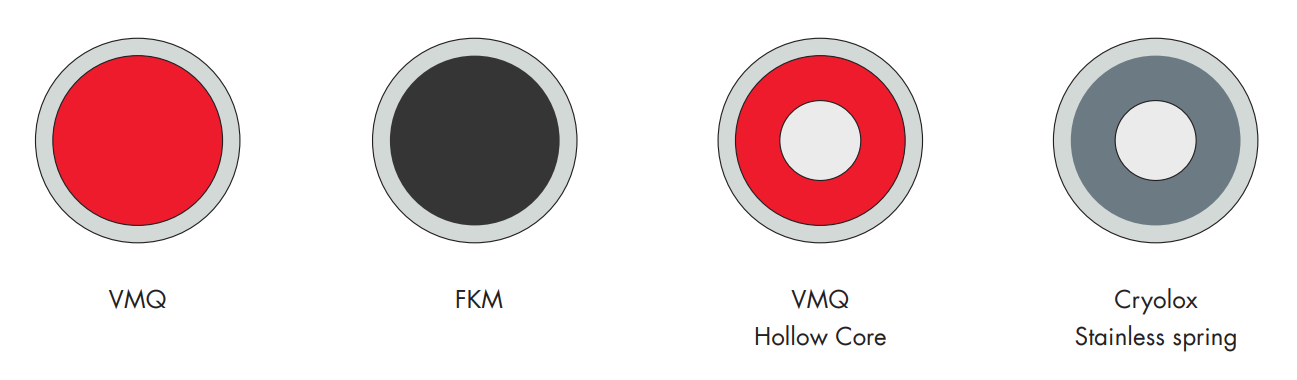

Our FEP encapsulated O-rings are available from stock with a core of VMQ or FKM. Further possibilities are available with a hollow core in the case of the elastomer and a spiral spring for extreme low temperatures.
HITEC® Precision O-rings
The HITEC® brand stands for O-rings that meet very high standards or fulfil approval and conformity requirements in the drinking water, pharmaceutical, food and gas sectors. HITEC® O-rings are only manufactured in one defined factory and all materials have a clearly defined formulation.
NORMATEC® O-rings
The NORMATEC® O-ring range comprises O-rings of good industrial quality that meet standard requirements. As quality sealing elements, NORMATEC® O-rings are specially designed for high-volume applications: An efficient network of modern and rationally producing manufacturers in Europe and Asia results in a very good price/performance ratio. Depending on the quality and required dimensions, several manufacturers are approved to produce NORMATEC® O-rings according to Angst+Pfister's product specifications.
Precision O-rings
Special procurements or modifications based on the various qualities of the standard range open up the possibility of offering individual, project-related solutions with precision O-rings: Angst+Pfister has access to a large mould tool park that allows us to deliver even unusual dimensions on time. If required, Angst+Pfister will procure special materials or materials developed specifically for the customer.
Surface finishes serve to facilitate assembly or enable the (partially) dynamic use of O-rings that are generally used statically. To reduce friction or improve separation, surface coatings or treatments can be considered. In addition, O-rings can be coated with PTFE in all colours for clear identification of the materials during assembly.
Other special O-rings:
• End vulcanized round cord rings – available in any dimension at short notice
• XL O-rings – in large dimensions with a very high-quality standard regarding surface finish and tolerances
• X-rings – four-lip seal as an alternative to O-rings
• Back-up rings – prevent the O-ring from entering the sealing gap
