APSOseal® Rotating shaft seals
Radial shaft seals and axial shaft seals for applications with rotational motion
The perfect fit between rotating and stationary components
Radial shaft seals and axial shaft seals are gaskets made in elastomer and/or plastic material, with or without metal inserts and energizing springs, to be applied on shafts with relative rotary motion. They are primarily used for drivelines, axles, agriculture machines and construction equipment, compressors and pumps, mixers, robotics, gearmotors and others.
Rotating seals are devices widely utilized to prevent any leakage or any exchange of media (pasty, liquid, and gaseous), to contain the pressure, and to exclude any contamination of dust, moisture, and dirt between two chambers that are subject to a relative either rotating or oscillating motion. But the primary sealing function is only one requisite an effective and reliably performing radial shaft seal needs to fulfill, as other features are essential too.
Application success with material knowledge
Be it either a rubber seal or a plastic seal, choosing the right materials can provide the proper chemical inertia against the media in contact, the correct physical performance against the working temperature and the working pressure, and the necessary tribological properties to withstand high tangential speed and strong abrasion. From NBR to FKM, HNBR, CR, ACM, AEM, PTFE-Polytetrafluoroethylene and Polyurethane – a wide range of elastomer compounds are available at Angst+Pfister for either lubricated or dry working conditions. And according to the application environment, different steel types can be used for the metal inserts and for the springs.
It goes without saying that best solution for your sealing application can be achieved by making use of our highly specialized competence in the area of materials, specifically by optimizing the elastomer compounds, engineering plastic materials and metals used. Together with our engineering know-how for conceiving the most effective rotating seal design, this makes for a recipe for success!
Tackling your problems
Working pressure, tangential speed, dimensional constraints, working temperature, chemical composition of the media to be sealed, efficiency in low drag torque, and long endurance are all conditions that an effective solution needs to satisfy. Angst+Pfister has developed the specific expertise over a century of activities across the different OEM Industries to support you in defining the most suitable sealing solutions.
Angst+Pfister offers a comprehensive range of standard normalized sealing solutions shown in the table below, as well as the possibility of co-designing customized devices to fully meet even the most stringent customer’s requirements for harsh applications. Our engineering and product application specialists aim to provide leading-edge technology and valuable solutions for all your rotary shaft applications. Get in touch with us now!
Applications
- Gearmotors / Gearboxes
- Gear pumps and motors
- Compressors and pumps
- Driveline and axles
- Spindles
- Robotics
- Agitators and mixers
Product List
Product | Image | Description | Technical data | Peculiar features | Key applications | Order | ||||||||||||||
Material | Hardness | Colour |
Temperature (°C) |
Peripheral speed (m/s) | Pressure rating (bar) | Dust protection | Low friction | High speed and high T resistance | Gearmotors & gearboxes | Gear pumps & motors | Compressors & pumps | Driveline & axles | Spindles | Robotics | Agitators and mixers | |||||

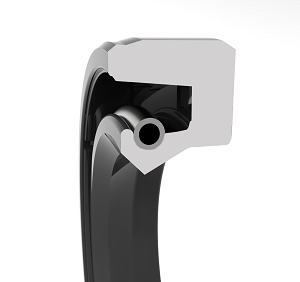

Type A | ![]() |

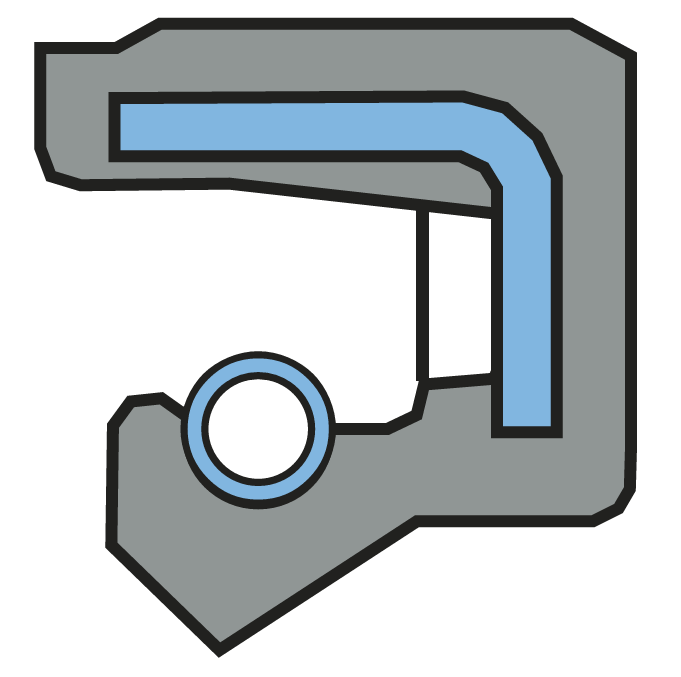

Standard radial shaft seal with sharply cut or pressed sealing lip and coated metal cage on the outside diameter. Good sealing effect with bearing oils and greases. | NBR | 70 Shore A | black | -40 to +100 | 14 | <0.5 | x | Special high pressure versions only | x | x | ||||||||
Type A | ![]() |
Standard radial shaft seal with sharply cut or pressed sealing lip and coated metal cage on the outside diameter. Good sealing effect with bearing oils and greases. | FKM | 80 Shore A | brown | -20 to +200 | 37 | <0.5 | x | x | Special high pressure versions only | x | x | |||||||

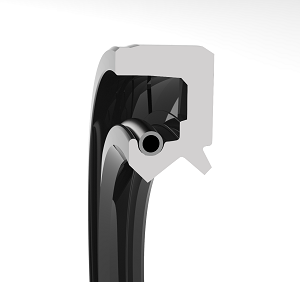

Type AS | ![]() |

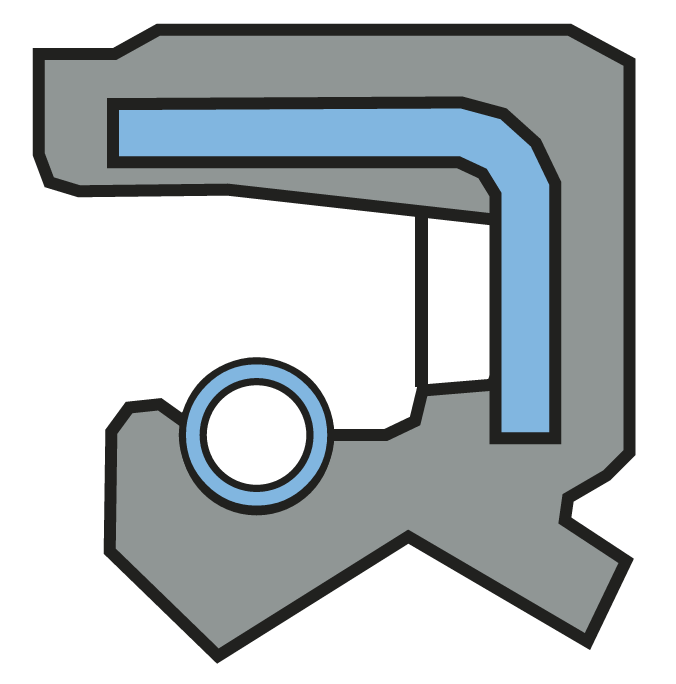

Standard radial shaft seal with sharply cut or pressed sealing lip and coated metal cage on the outside diameter. Good sealing effect with bearing oils and greases. Design with additional dust protection lip. | NBR | 70 Shore A | black | -40 to +100 | 14 | <0.5 | x | x | Special high pressure versions only | x | x | |||||||
Type AS | ![]() |
Standard radial shaft seal with sharply cut or pressed sealing lip and coated metal cage on the outside diameter. Good sealing effect with bearing oils and greases. Design with additional dust protection lip. | FKM | 80 Shore A | brown | -20 to +200 | 37 | <0.5 | x | x | x | Special high pressure versions only | x | x | ||||||

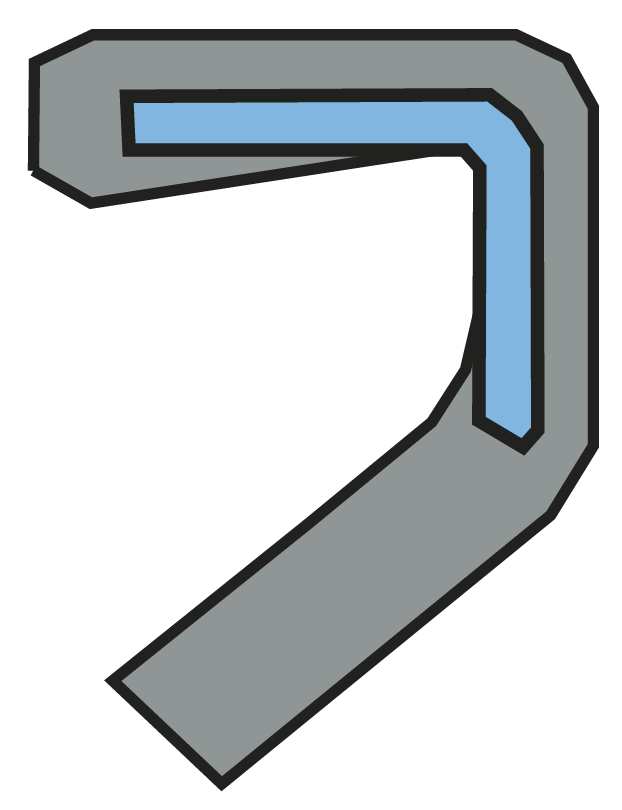

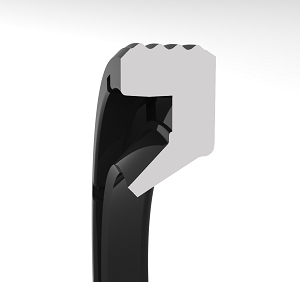

Type SA | ![]() |
Radial shaft seal with sharply cut or pressed sealing lip and coated metal cage on the outside diameter. Design without radial spring for lower radial forces. | NBR | 70 Shore A | black | -40 to +100 | 14 | <0.5 | x | x | ||||||||||

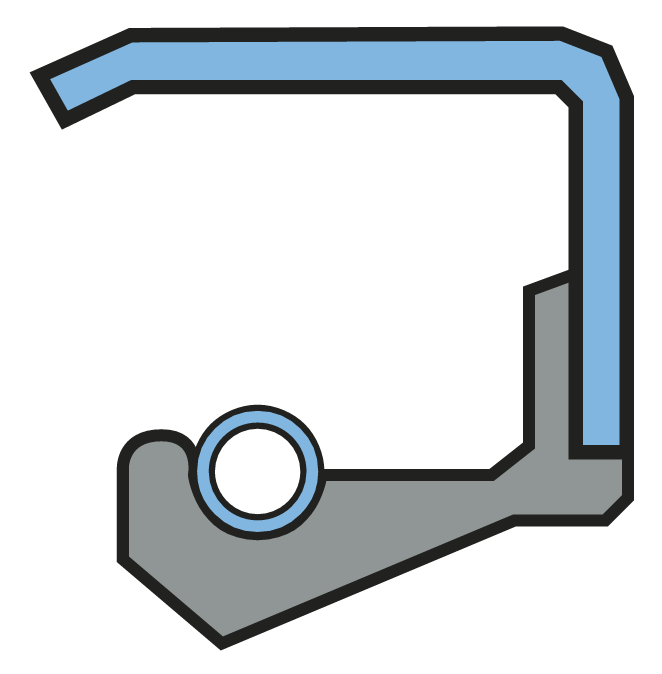

Type B | Radial shaft seal with sharply cut or pressed sealing lip and metallic stiffening ring on the outer surface. Good sealing effect with bearing oils and greases. Extremely precise positioning in the housing or location hole. | NBR FKM |
<0.5 | FKM version only | x | |||||||||||||||

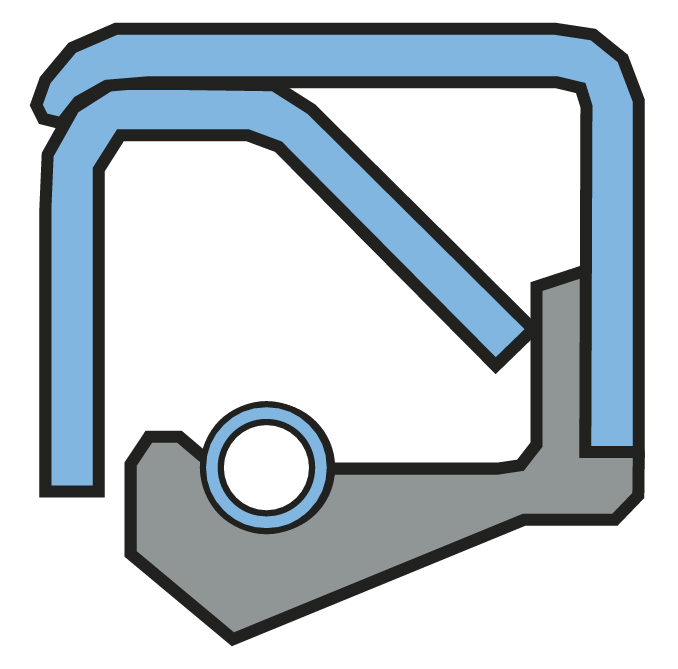

Type C | Radial shaft seal with sharply cut or pressed sealing lip and metallic stiffening ring on the outer surface. Good sealing effect with bearing oils and greases. Extremely precise positioning in the housing or location hole. | NBR | 70 Shore A | black | -40 to +100 | 14 |
<0.5 |
x | x | |||||||||||

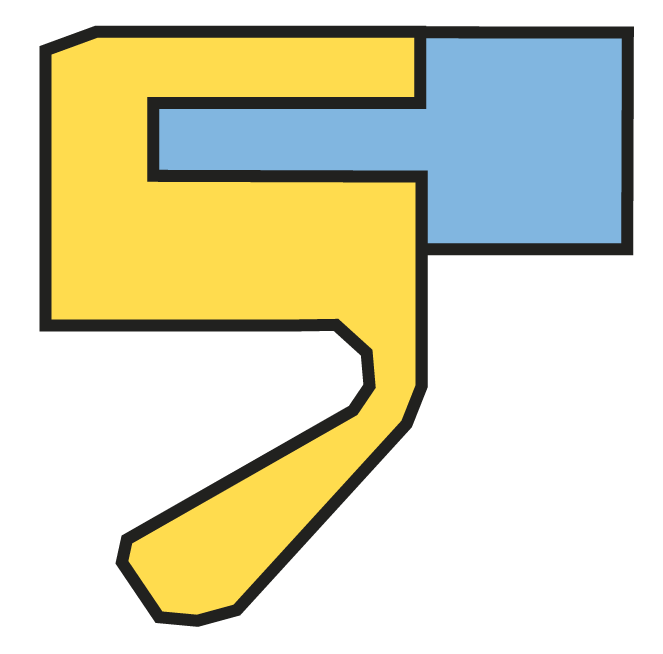

Type HTS II | ![]() |

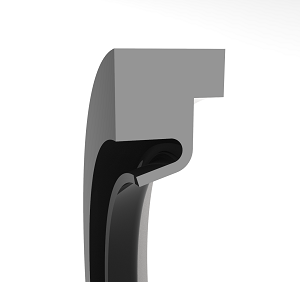

PTFE rotary shaft seal with steel clamping ring on the rear side and self-retightening sealing lip. Design without radial spring with good dry running properties and low friction. Steel clamping ring does not come into contact with the medium. | PTFE / Carbon | black | -70 to +200 | 18 | <6 | x | x | x | x | |||||||||

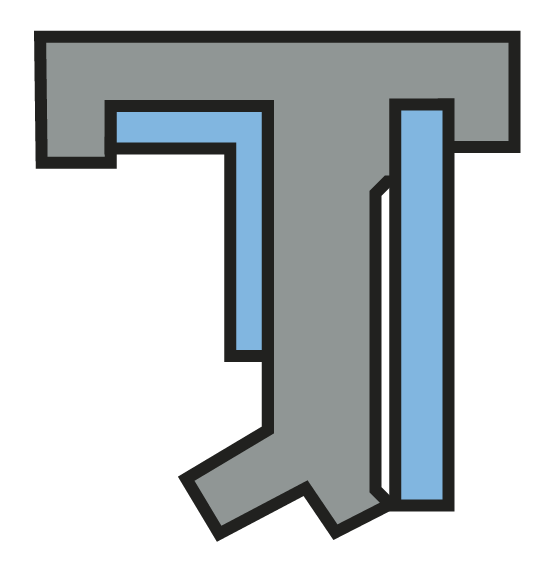

Type BSB | ![]() |

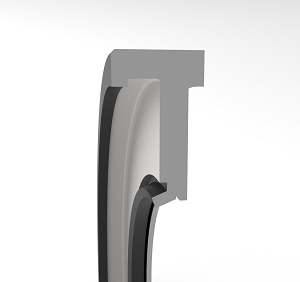

Diaphragm rotary shaft seal including single lip seal with steel backing ring and support/dust lip for low friction and low wear. Also suitable for repairs as the old running-in track of the first seal is not used and therefore no reworking of the shaft is necessary. | FKM | 70 Shore A | turquoise | -30 to +220 | 40 | <15 | x | x | x | x | x | |||||||

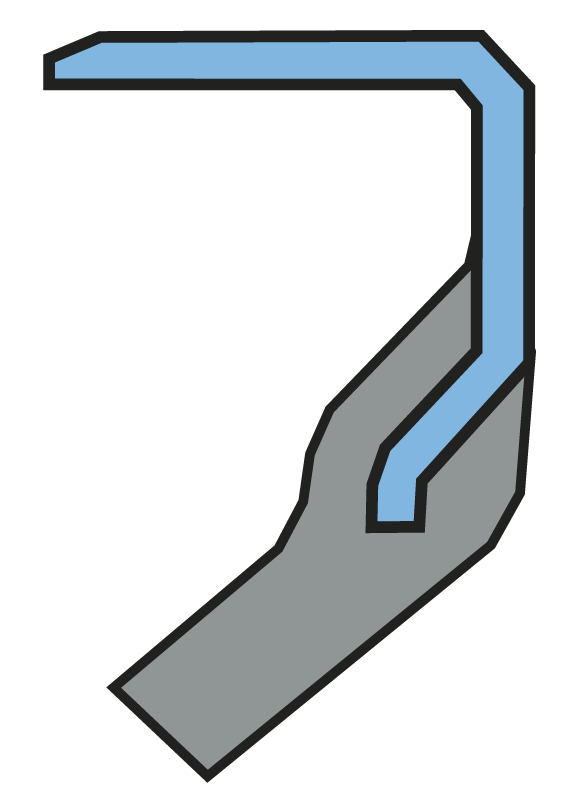

Type SAB | Radial shaft seal with sharply cut or pressed sealing lip and metallic centering ring on the outside diameter. Design without radial spring for lower radial forces. | NBR FKM |
40 | <15 | x | FKM version only | x | x | x | |||||||||||

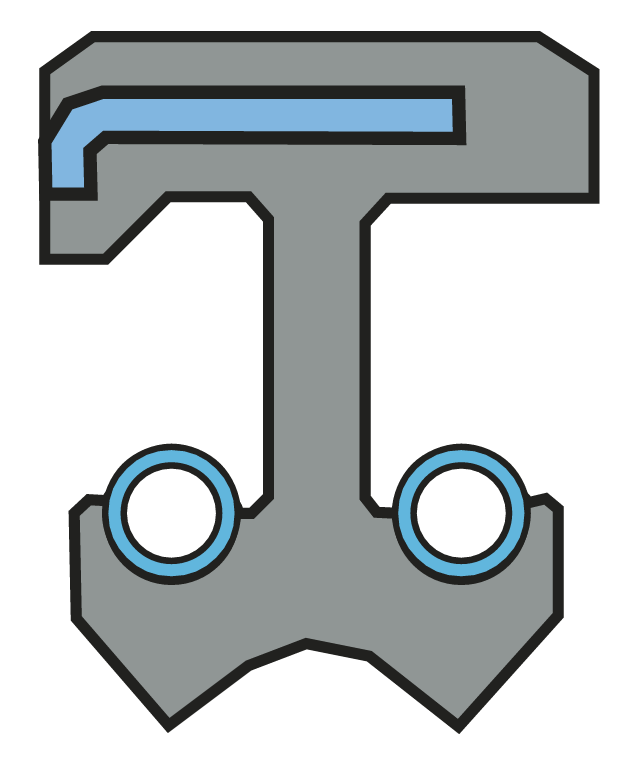

Type DUO | Double lip seal to separate two media. Space-saving version available with coated metal cage or metal centering. | NBR FKM |
<0.5 | FKM version only | x | x | x | |||||||||||||

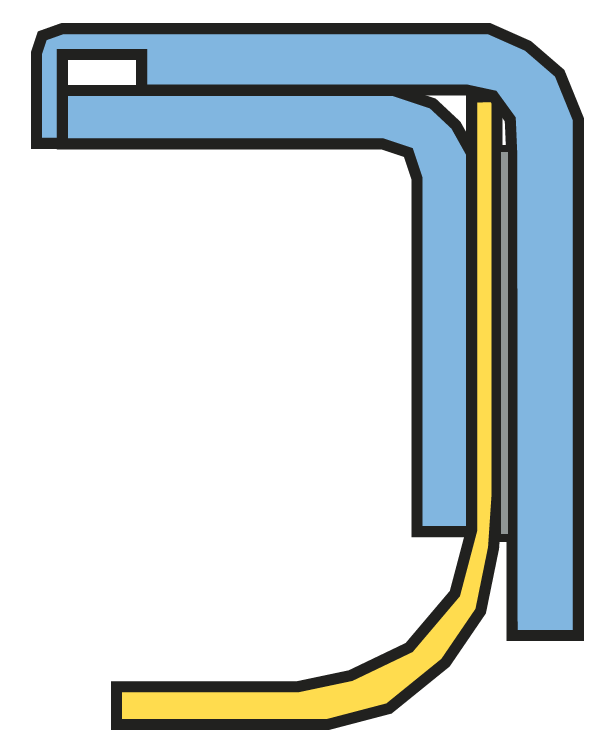

Type MHX 2000 | PTFE rotary shaft seal including metal housing with clamped PTFE sealing lip. Self-tightening sealing lip without metal spring. Good dry running properties with low friction. | PTFE / Carbon | -70 to +200 | 40 | <1 | x | x | x | x | x | ||||||||||
Cassette Seals | ![]() |
Cassette seals provide a higher protection among the range of the Radial Shaft Seals. By means of a labyrinth with a combination of some radial and axial sealing lips, the sealing performance on both inner and outer diameters produces the perfect and reliable isolation between the lubricant side and the harsh outer environment. The filled-in grease in the cavities of the labyrinth assure a much longer life time and a reduced drag torque. | Combination of different materials acc. to application | <0.5 | x | Version with PTFE lip | Version with FKM or PTFE lip only | x | x | x | ||||||||||
COMBI Seal | ![]() |
COMBI seals integrate an excellent inner oil seal function with a strong outer protection from harsh environment. The use of a different material for the outer seal enhances the protection from the external pollution. | Combination of different materials acc. to application | <0.5 | x | Version with PTFE lip | Version with FKM or PTFE lip only | x | x | x | x | |||||||||

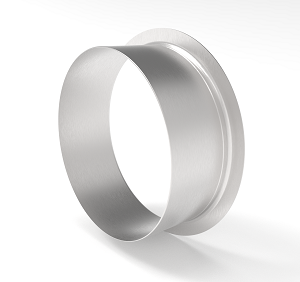

Sleeve | ![]() |
The shaft sleeve is a particularly economical solution to prevent wear on shafts and axles by contact seals. Running surfaces already damaged by run-in marks are successfully replaced by Speedy-Sleeve without any problems, within minutes and with simple hand movements. | Stainless steel | x | x | |||||||||||||||
End Cap | ![]() |

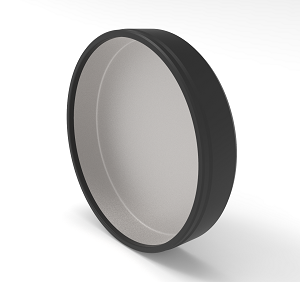

The end cap provides a perfect sealing protection for gear devices and gear boxes where the shaft doesn't pass through. Easy to install, it tolerates higher metal surface roughness and provides a radial static sealing with reliable tightness. It reduces the risk of corrosion and it compensates the resulting gap by the differential thermal expansion between the box case and its metal insert. | NBR | 70 Shore A | black | -40 to +100 | <0.03 | x | x | |||||||||||

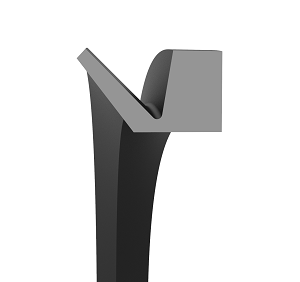

V-Ring Type A | ![]() |

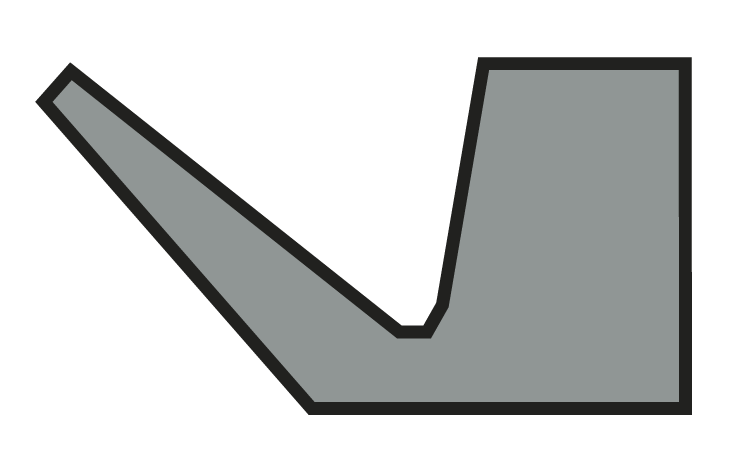

Standard V-ring with short design and straight back. Can be mounted against stop. | NBR | 60 Shore A | black | -40 to +100 | 12 | <0.2 | x | x | x | |||||||||
V-Ring Type A | ![]() |
Standard V-ring with short design and straight back. Can be mounted against stop. | FKM | 60 Shore A | brown | -20 to +150 | 12 | <0.2 | x | x | x | x | ||||||||

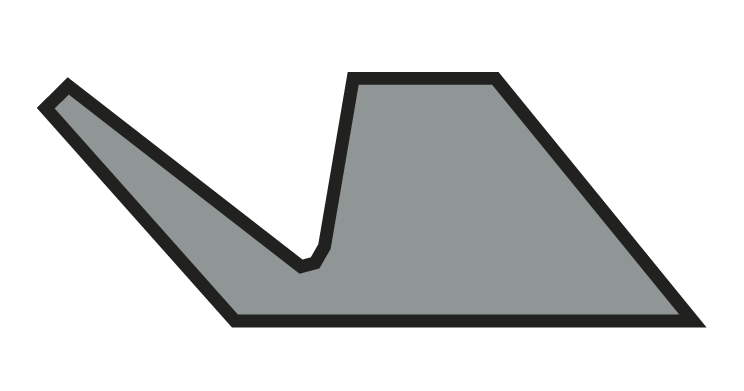

V-Ring Type S | ![]() |

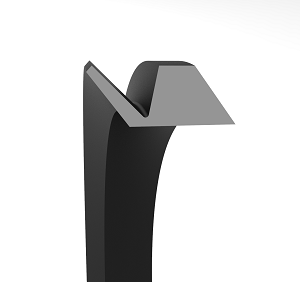

Standard V-ring with angled back for better spinning action. Long design and long bearing surface. | NBR | 60 Shore A | black | -40 to +100 | 12 | <0.2 | x | x | x | |||||||||
V-Ring Type S | ![]() |
Standard V-ring with angled back for better spinning action. Long design and long bearing surface. | FKM | -20 to +150 | 12 | <0.2 | x | x | x | x | ||||||||||

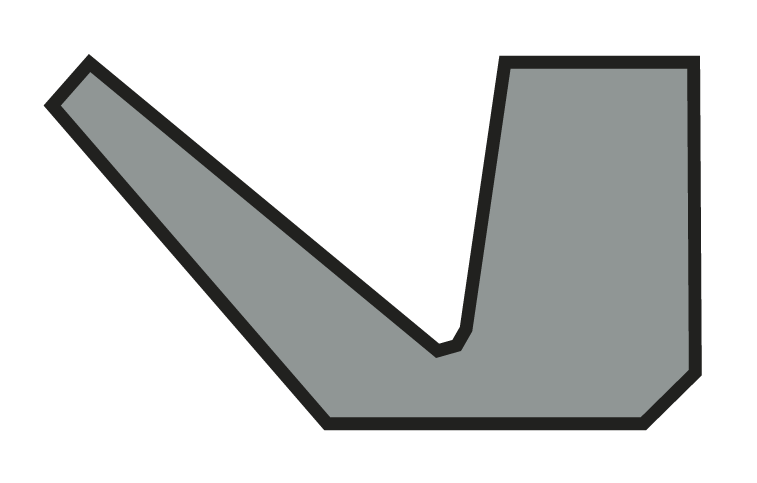

V-Ring Type L | Standard V-ring for larger diameters with short design and straight back for mounting against stop. Use in labyrinth sealing solutions. | NBR | 60 Shore A | black | -40 to +100 | 12 | <0.2 | x | x | x | ||||||||||

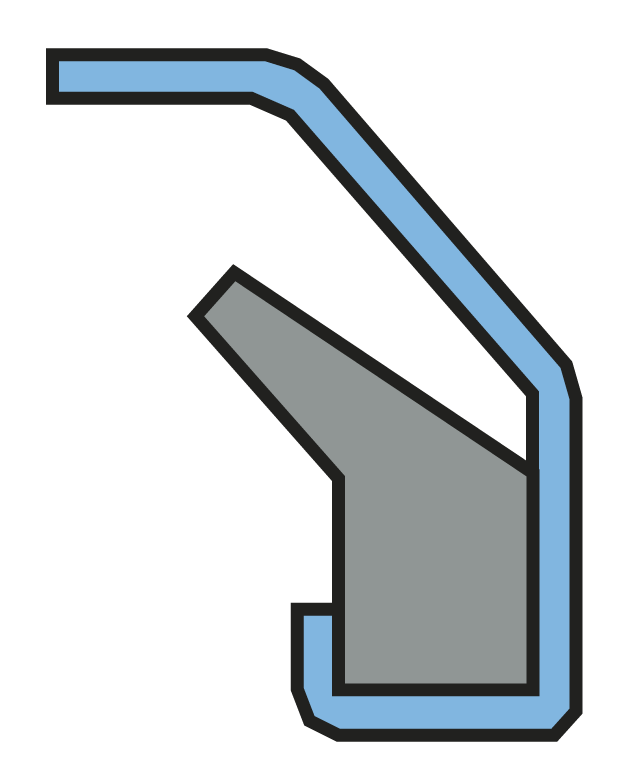

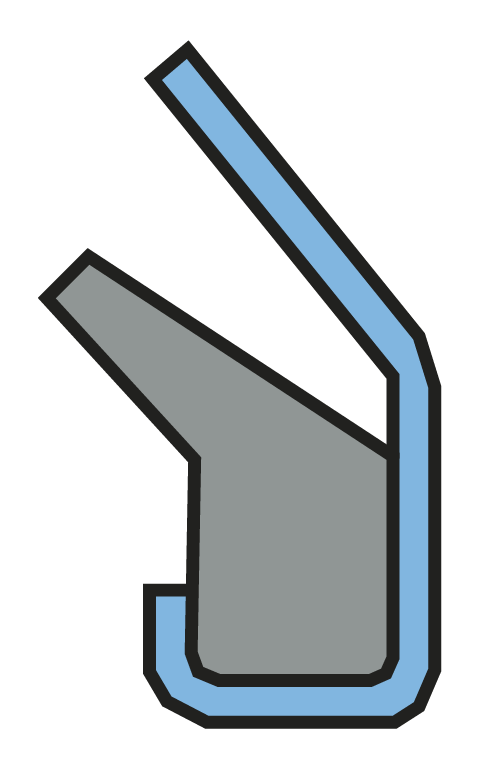

GAMMA form RB | Axial shaft seal with small installation width and mechanical protection of the sealing lip. The metal housing encloses the sealing lip. Installation with press fit on shaft. | NBR | 75 Shore A | -30 to +100 | 12 | <0.2 | x | x | x | x | x | x | x | x | x | |||||
GAMMA form 9RB | Axial shaft seal with small installation width and mechanical protection of the sealing lip. The metal housing encloses the sealing lip. Installation with press fit on shaft. | NBR | -30 to +100 | 12 | <0.2 | x | x | x | x | x | x | x | x | x |
